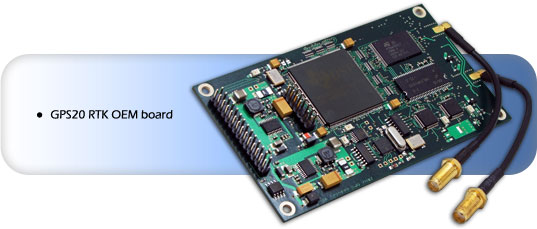

GPS20 RTK OEM Board

MB-RTK board using 2 antennas to measure yaw and pitch angle at 20Hz

Hynav's GPS20 RTK board includes all the functionality of our GPS20 board, and in addition calculates the angle between the antennas in two dimensions (yaw and pitch) to within a degree. These is achieved by taking the signal from a second GPS antenna, and using state of the art moving-base real time kinematic processing techniques.

This board is ideal for system integrators who require accurate angular information; projected applications include robotics, feedback and control, automotive chassis dynamics, accident reconstruction, electronic compasses, and many more.

In common with the GPS20 board, the GPS20 RTK board is designed to be as easy to integrate into a product as possible:

• Power supply requirement - the board can be powered from any voltage in the range of 5V - 12V.
• Common output formats built in - the board includes both CAN and serial outputs.
• Extendable - a number of SPI lines are output from the main processor to headers pins, and an SDK is available to allow customisation of the core code to use extra peripherals that may be used in this way.

Technical Specifications

Size: 115x63mm.

Minimum clearance required: 125x63x15mm.

Price (1 of): TBA
